Tilton 72-616 Pedal Box (Underfoot)

£685.00 (Vat Excluded)

Vendor: Tilton

DESCRIPTION

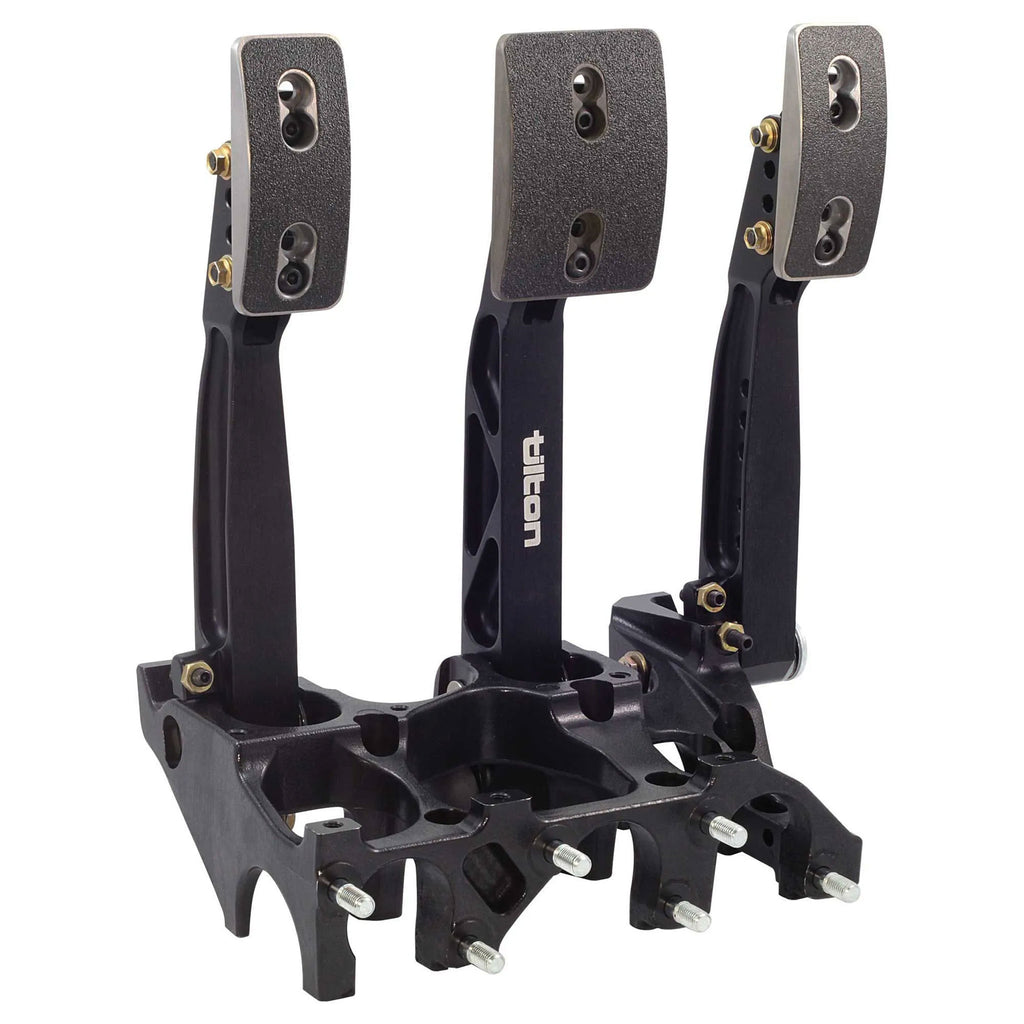

Tilton 600 Series 72-616 3-Pedal Floor Mounted Pedal Box featuring a rear-facing master cylinder layout (cylinders will sit under the driver's feet).

This enables the pedals to be mounted further forward, which allows a greater range of driver seating positions.

Forged aluminum pedals and an aluminum frame give the Tilton 72-616 underfoot pedal assembly rigid and lightweight support for even the most grueling applications. Included with the assembly is a large 7/16”-20 balance bar, which minimizes flex and provides a solid pedal feel. Action on the pedals is kept smooth and consistent with low friction oil-impregnated bushings on the pedal pivots.

Features

Forged aluminum pedals engineered for high rigidity & low weight
Lightweight & rigid aluminum frame designed to accept heal rest
Large 7/16”-20 balance bar minimizes flex & provides a solid pedal feel/response
Aluminum foot pads can be adjusted vertically, horizontally, & an angle to suit individual driver preferences
Adjustable pedal ratio (5.4:1-6.9:1) enables fine-tuning of the braking system
Low friction oil-impregnated bushing on pedal pivots
Weighs 2.9 kg

Optional Extras

Master Cylinders

Throttle Linkage
