  • SKU: BR1070

Caliper Radial (280x21mm) L/H

£319.80 (Vat Excluded)
DESCRIPTION

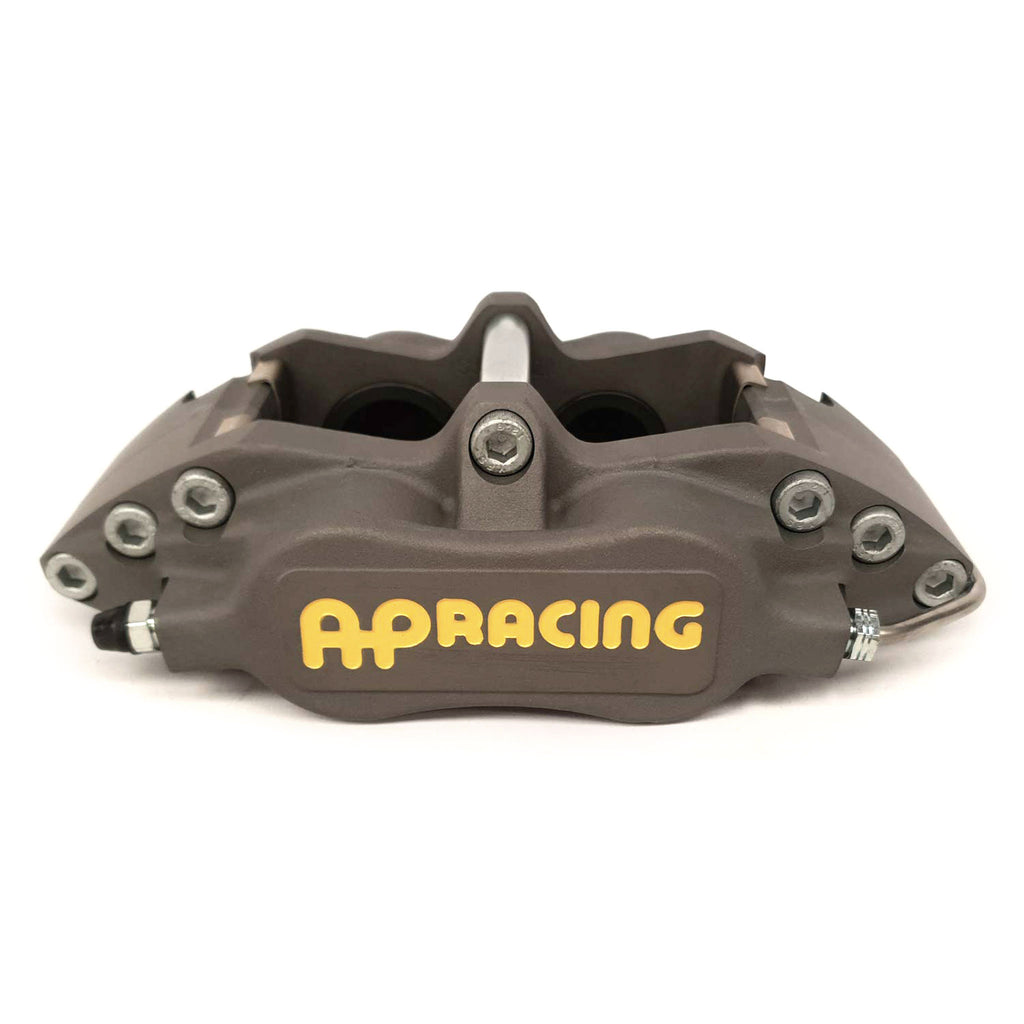

AP Racing Caliper Radial 4 Piston - Two Piece Cast body (280mm x 21mm) Left Hand (CP4567-9S4). Suitable for Front & Rear for 13" wheel.

Right Hand Side (CP4567-8S4) is also available.

Features:

  • Radial Mount, 152 centres.
  • Two piece cast aluminium alloy body.
  • Suits 280mm x 21.0mm discs.
  • Aluminium pistons.
  • Single bolt pad retainer.
  • Stainless steel wear plates fitted.
  • 4lb Anti-knockback springs fitted.

Technical Specifications

Disc Diameter Ø280.0mm
Disc Thickness 21.0mm
Weight (no pads) 1.6kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 152.0mm
Mounting Offset 27.3mm
Mounting Hole Ø10.2 mm
‘PL’ Dimension 50.5mm
Bleed Screw Tightening Torque 17Nm

Suitable Brake Discs
