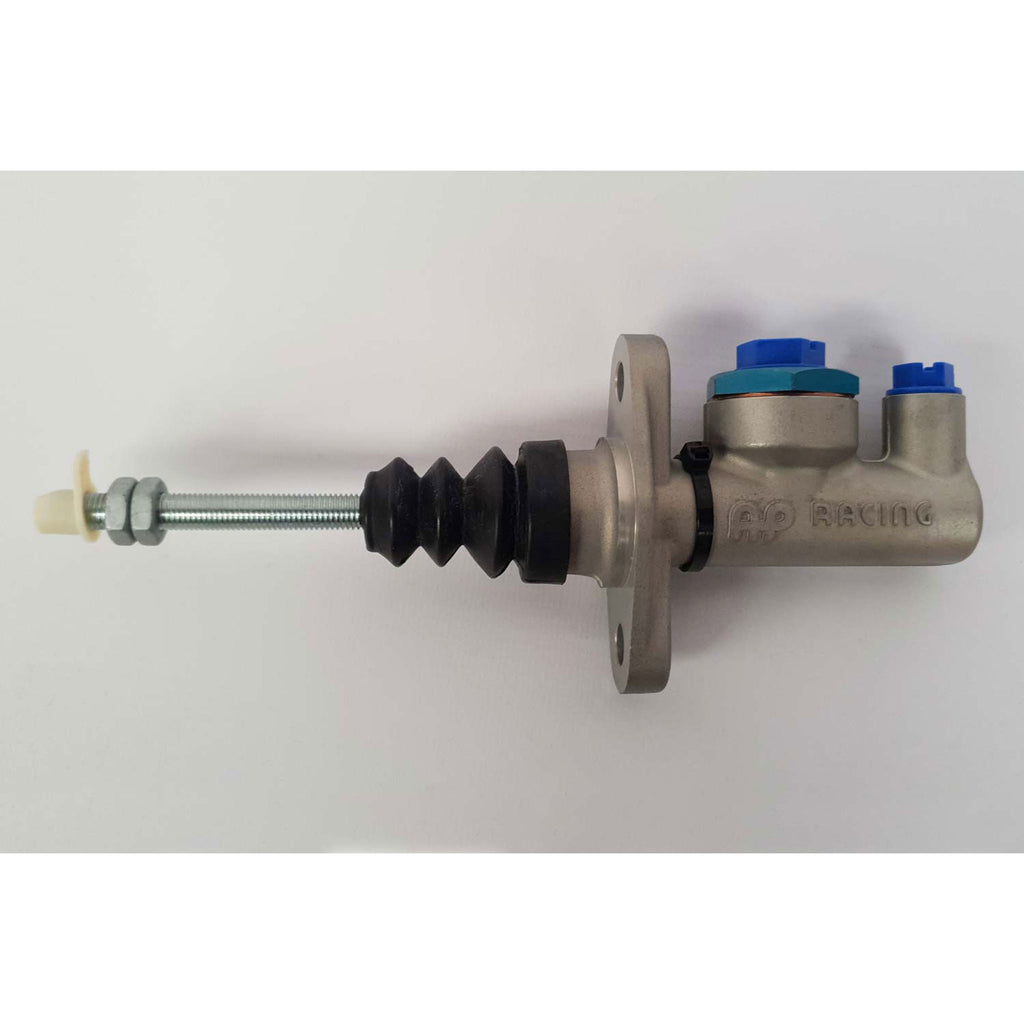

AP Racing CP2623-90PRT160 0.625" Master Cylinder. A lightweight compact master cylinder suitable for all brake & clutch applications especially where space is restricted.
Features
Specifications
Bore Size | 15.9 mm (.625") 5/8" |
---|---|
Full Stroke | 25.4 mm (1.00") |
Travel To Cut-Off | 0.68 to 1.09 mm (0.027 to 0.043") |
Inlet Hydraulic Thread | 7/16" x 20 UNF |
Outlet Hydraulic Thread | 3/8" x 24 UNF |
Push Rod Thread | 5/16" UNF |
Push Rod Length from Mounting Flange | 160 mm (6.3") |
Weight | 0.31 kg (0.7 lbs) |
