CP6840-7S4L Front Caliper L/H For R5 Fiesta / Escort Mk2

£1,489.00 (Vat Excluded)

DESCRIPTION

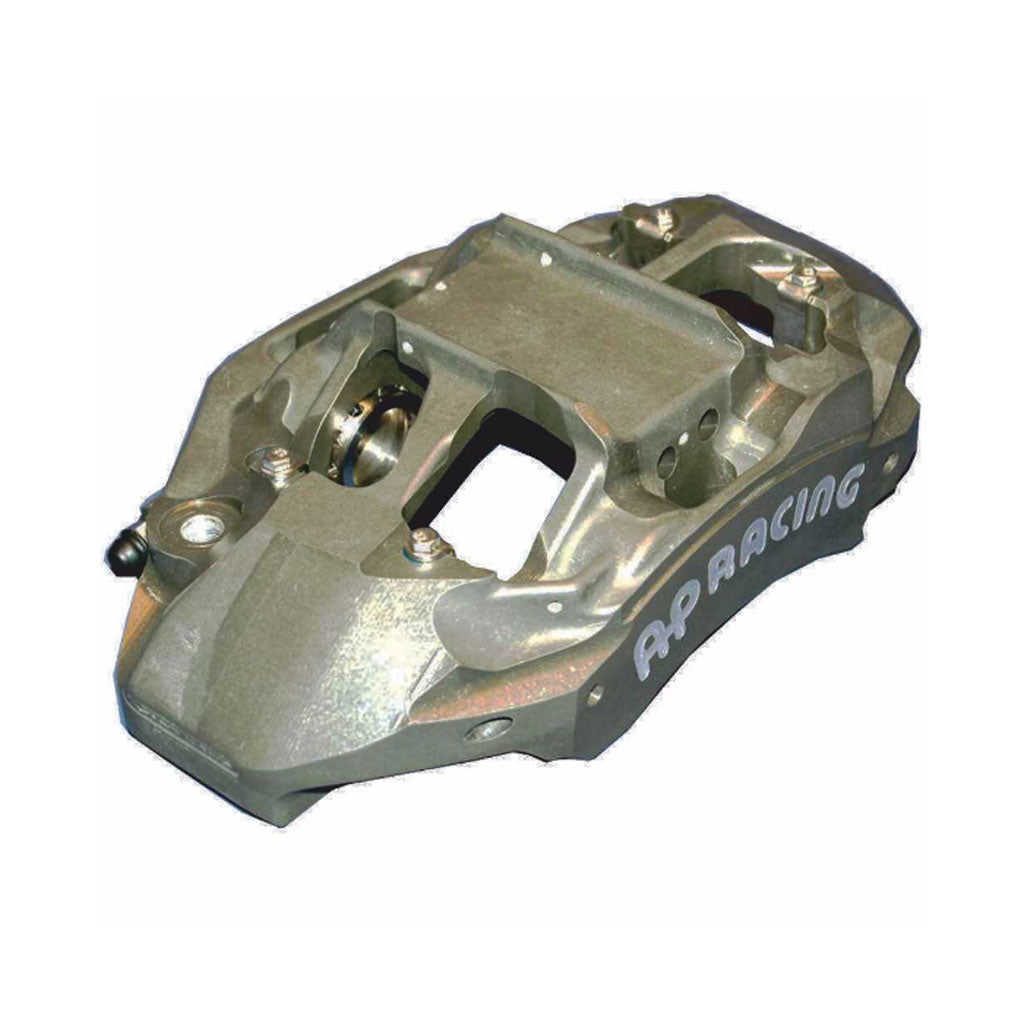

AP Racing CP6840-7S4L Left Hand Side Front 4 Piston Caliper.

Suitable for R5 Ford Fiesta, also used on some Ford Escort Mark II's.

Features

Radial mount, 180 x 42mm centres
Forged monobloc Aluminium alloy body
Suits Ø355 or Ø300 x 32mm iron discs
Benefits from radical asymmetric design concept for superior dynamic performance
Ducted air cooling features, reduces caliper temperatures
Monobloc aluminium alloy body
Internally Ported
No external bridge pipe
M10 x 1.0 Threaded Inlet
Stainless steel pistons
High temperature, low drag seals fitted as standard
Manufactured with bleedscrew and pipe protection

Specifications

Piston Sizes	Ø34.9 mm x 2 Ø41.3 mm x 2
Piston Area	45.9 cm³
Disc Diameter	Ø300 mm to Ø355 mm
Disc Thickness	32 mm
Weight (no pads)	2.16 kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	180 mm
Mounting Offset	42 mm
Mounting Hole	Ø10.175 mm
‘PL’ Dimension	57.5 mm
Bleed Screw Tightening Torque	17 Nm
Dry Break Tightening Torque	13 Nm

Optional Extras
